100L Vacuum Homogenizing Mixer Lotion Emulsifier Making Cosmetic
Mixing Tank
Brief Introduction:
Total volume: 130L, Working volume: 100L
1. The machine has hydraulic lift cover, high-speed homogeneity
blender (Speed is 0-3600r/min, frequency speed regulation) and
low-speed scraper blender (Speed is 0-65r/min, frequency speed
regulation).
2. The machine is specially designed adopting advanced technology
of oversea according to the cosmetic and ointment production
technology. The machine is made up of pretreatment boiler, vacuum
emulsification blending boiler, vacuum pump, hydraulic system and
worktable.
3. The machine has easy operation, steady capability, good
homogeneity, high efficiency, reasonable structure, small volume
and high automation level and easily clean.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system |
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 |
| The parameters are for reference only, all the machines can be
customized according to your needs. |

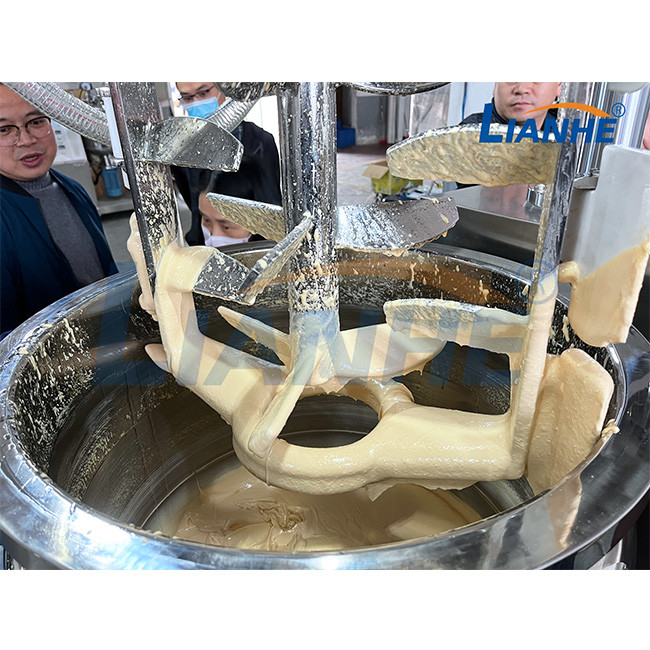

Mixing Design:
The SUS316L paddle mix anticlockwise, Speed: 0-65r/min.
Teflon Scraper, Scraping the wall during mixing to reduce the
sticking of materials to the tank.
The stirring paddle of the emulsifying mixer is hygienically
polished, with no dead corner welding and no material residue.
Oil Tank and Water Tank:
Both the oil tank and the water tank are made of three-layer
stainless steel, and the heating medium circulates in the jacket.
The parts of the two jars that come into contact with the material
are made of 316L stainless steel and fully comply with GMP
standards.
The motor is installed on the top of the tank, and the high
dispersion speed reaches 1440r.p.m.
Homogenizer:
Name: Rotor and stator adopts wire-cutting finish machining high
shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm
Burgmann mechanical seal, water circulation cooling, cooling and
homogenizer synchronization, NSK bearing, Siemens motor, Panasonic
frequency inverter
Application Product:
Various kinds of operation modes are optional.
Easy to clean & maintain for the internal structure.
Available to choose to mount CIP cleaning system.
It is simple, reliable and cost-effective in equipment structure.
Other functions can be customized as well.
Skin & Hair Care: Body lotion, Facial cream, Sunscree cream, Serum,
Hair dye, Hair conditioner, etc.
Cosmetic: Liquid foundation, Gel, BB cream, mascara, Lipstick,
Concealer, Lip gloss, etc.
Pharmaceutical: Ointment, Erythromycin eye ointment, Compound
Dexamethasone Acetate, Skin repair gels, Scald creams, etc.
Food: Mayonnaise, ketchup, Cheese, Sauce, Paste, Coconut oil, etc.
