High Quality Vacuum Emulsifier Mixer Cosmetic Ointment Mixing Tank
with Agitator
Brief Introduction:

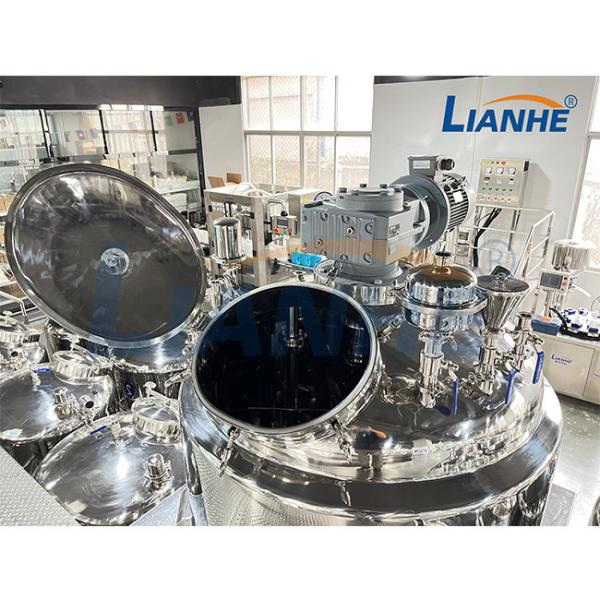

High Quality Vacuum Emulsifier Mixer Cosmetic Ointment Mixing Tank
with Agitator is professionally designed according to the manufacturing process
of cosmetics, creams and other ointments. The equipment consists of
a vacuum stirring pot, a water pot, an oil pot, a vacuum pump, a
hydraulic system, a dumping system, an electric control system, a
working platform, etc.
The equipment adopts PLC touch screen control, and its advantages
include: convenient operation, stable performance, significant
homogenization effect, high production efficiency, convenient
cleaning, reasonable design, customized placement according to
locality, high degree of automation, etc.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system |
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 |
| The parameters are for reference only, all the machines can be
customized according to your needs. |
- Our company's emulsification equipment usually has one-way mixing,
two-way mixing, internal and external circulation mixing 45degree inclined blade ensures material rolling and stirring effect.
- The control center can be divided into touch screen or button
control, you can choose the console that suits you according to
yourcustomization
- Vacuum defoaming makes the material reach the requirement of
sterility. Use vacuum suction, especially powdery materials, vacuum suction can avoid dust. 2. The emulsification pot cover can
adopt a lifting system, which is convenient to clean, and thecleaning effect is more obvious. The emulsification pot can be
poured water. 3. The pot body is welded with imported three-layerstainless steel plate. The tank body and pipeline adopt mirror
polishing, which is in full compliance with GMP requirements.
- According to your customized size and capacity, the motor power
will also be different, so as to better adapt to differentmachines and create comfortable mechanical equipment.
Application Product:
Various kinds of operation modes are optional.
Easy to clean & maintain for the internal structure.
Available to choose to mount CIP cleaning system.
It is simple, reliable and cost-effective in equipment structure.
Other functions can be customized as well.
Skin & Hair Care: Body lotion, Facial cream, Sunscree cream, Serum,
Hair dye, Hair conditioner, etc.
Cosmetic: Liquid foundation, Gel, BB cream, mascara, Lipstick,
Concealer, Lip gloss, etc.
Pharmaceutical: Ointment, Erythromycin eye ointment, Compound
Dexamethasone Acetate, Skin repair gels, Scald creams, etc.
Food: Mayonnaise, ketchup, Cheese, Sauce, Paste, Coconut oil, etc.
