200L Cosmetic Cream Facial Cleanser Vacuum Emulsifying Mixer
Stainless Steel Tank
product description:
The product is mainly applied in such industries as daily chemical
care products, biopharmaceutical industry, food industry,paint and
ink, nanometer materials, petrochemical industry, printing and
dyeing auxiliaries, pulp & paper, pesticide, fertilier,plastic &
rubber, electrics and electronics, fine chemical industry, etc. The
emulsifying effect is more prominent for materialsof high base
viscosity and high solid content.
product composition:

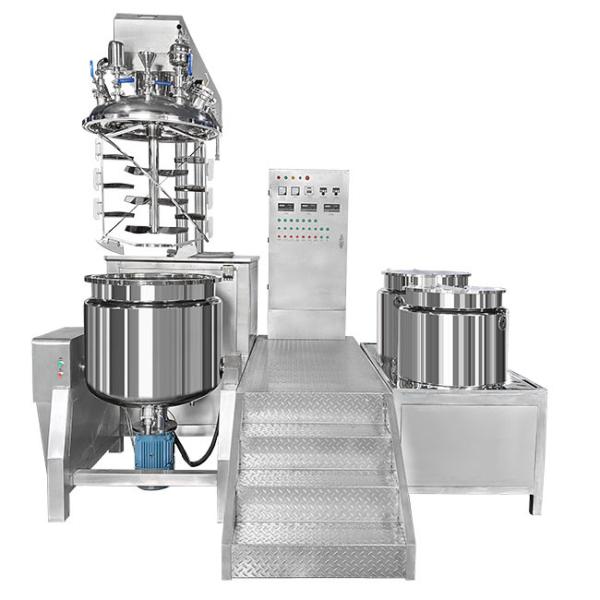

The vacuum emulsifying mixer is mainly composed of water pot, oil
pot, emulsifying pot, vacuum system, lifting system (optional),
electric control system (PLC is optional), operation platform, etc.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system |
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 |
| The parameters for reference only, all the machines can be
customized accordingly. |
product application:
The vacuum emulsifying mixer are mainly used to make high viscosity
emulsions, especially creams, ointments and lotions. The functions
of heating, cooling, dissolving, emulsification and vacuum
defoaming can be completed at one time with an emulsifier; the raw
materials can be fully pulverized, mixed, emulsified and
homogenized to increase the gloss and stability of the product.
Working principle:
After the materials are mixed and reacted in the water pot and oil
pot by heating and stirring, they are sucked into the
emulsification pot by the vacuum pump, and stirred through the
center of the upper part of the emulsification pot. The sticky
material causes the material to be taken to continuously generate a
new interface, and then through the shearing, compression and
folding of the blade and the rotating blade, it is stirred and
mixed to flow down to the homogenizer below the pot body, and the
material is then rotated at a high speed. In the process of strong
shearing, impacting, turbulent flow, etc. generated between the
cutting wheel and the fixed cutting sleeve, the material is cut in
the shearing seam and quickly broken into particles of 200nm-2um.
Because the emulsification pot is in a vacuum state, the material
The air bubbles generated during the stirring process are evacuated
in time.
Product details:
Our Service:
As the vacuum emulsifying mixers manufacturer, we customize
machines to meet customer needs. We can send our skilled engineers
to the customer’s factory to install the machine correctly. We also
provide a one-year warranty for all our machines and after-sales
service.
