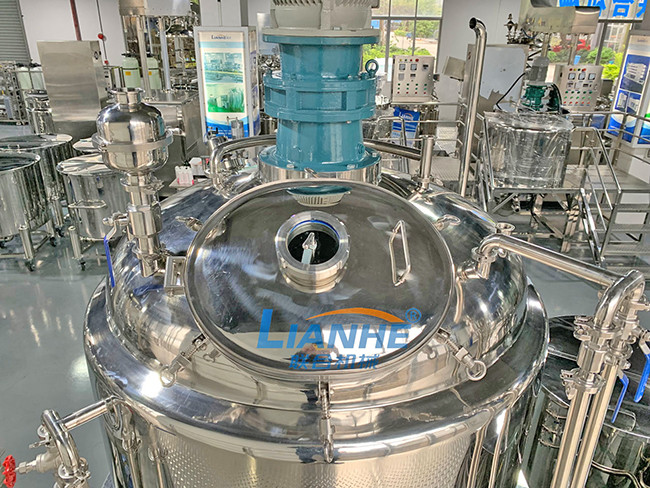

200L Sealed Cover Vacuum Homogenizer Mixing Heating Emulsifying
Machine
Product Description:
The Fixed Type vacuum emulsifying mixer has a large processing
capacity in continuous work, and can discharge homogeneously in a
cycle. It is suitable for continuous processing of single-variety
products.
Product Structure:
The vacuum emulsifying mixer is mainly composed of water pot, oil
pot, emulsifying pot, vacuum system, lifting system (optional),
electric control system (PLC is optional), operation platform, etc.
Product Parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system |
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 |
| The parameters for reference only, all the machines can be
customized accordingly. |
Homogenizer Working Principle:
The material is emulsified in the shear crack through the strong
shear, impact and turbulence between the high-speed rotating rotor
and stator, and quickly crushes into 200 nm-2um. Material
granulation, emulsification, mixing, blending and dispersion can be
completed in a short time.
Product Application:
The vacuum emulsifying mixer are mainly used to make high viscosity
emulsions, especially creams, ointments and lotions. The functions
of heating, cooling, dissolving, emulsification and vacuum
defoaming can be completed at one time with an emulsifier; the raw
materials can be fully pulverized, mixed, emulsified and
homogenized to increase the gloss and stability of the product.
Product Details:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
