1000L High Shear Conditioner Mixing Machine Detergent Mixer Emulsifier

Brief Introduction:

This is a mixing unit consisting of 4 tanks of different volumes.
After Lianhe Machinery Company made suggestions and communicated with customers, the construction was completed according to the drawings.

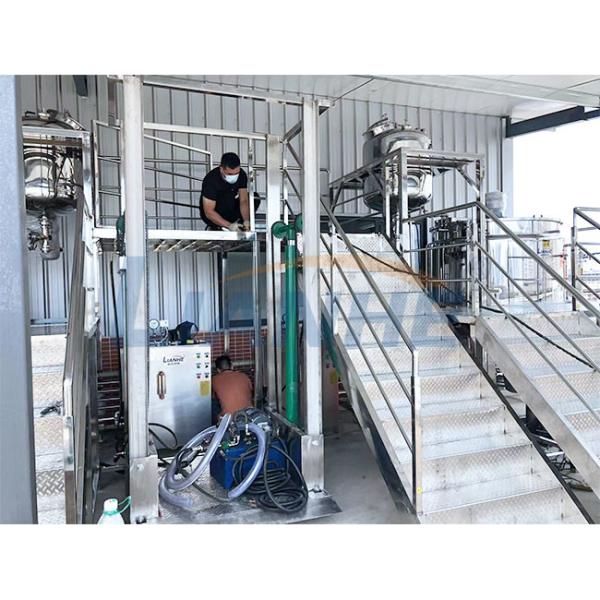

All mixers are installed on a two-tier stainless steel platform.

The oil tank is located on the upper level and the high shear mixer with homogenizer is located on the lower level.
The bottom of the oil tank is equipped with a high-speed disperser, the speed can reach 1440r.p.m, it can melt the solid grease and mix it quickly and evenly.

After the grease is melted, the customer can open the discharge valve at the bottom, and the grease will flow into the high shear mixer below through the stainless steel pipe, and the whole process does not need to be pumped.
Then we can further process the raw material to finally get the product we want.

The platform on the first floor is 1.6 meters above the ground, and the second floor is 2.4 meters above the ground. (Height can be customized)
All platforms are non-slip, with guardrails and handrails all around to ensure worker safety.

Technical Parameter:

Application Product:

1. Cosmetics industry: skin cream, shaving cream, sunscreen, facial cleanser, nutritional honey, dye cream, ion iron, hydrogen peroxide, etc., essence, moisturizing cream, hand cream, etc.
2. Daily chemical industry: detergent, shampoo, shower gel, conditioner, laundry detergent, hand sanitizer, toilet cleaning, car glass water, detergent, tire wax, cleaning cream, etc.
3. Pharmaceutical industry: latex, emulsion, various ointments (ointments), antibiotics, injections, oral syrups, oral liquids, gels, etc.
4. Food industry: jam, chili sauce, food slurry, condiment, cheese, nutrient solution, baby food, chocolate, sugar, etc.
5. Chemical industry: latex, saponified products, paints, coatings, resins, adhesives, New materials, etc.
6. Comprehensive: production equipment for various liquid products such as resin coatings, paints, shoe polish, chemical fibers, etc., supports a variety of liquid technologies, the machine has beautiful appearance, low noise, and is easy to move. The machine can be customized according to requirements, can be heated at a constant temperature, and can be selected from various styles of stirring blades.

Features:

The blender is all made of three-layer stainless steel, so it has two jackets. The medium circulates inside the jacket, raising or lowering the temperature.
Because 2000L is a relatively large volume, this customer chooses steam heating, which saves electricity and is more environmentally friendly.

The pressure of the steam is about 1-2 kg, so it can heat the raw material to 120 degrees Celsius.

Customer's Reviews:

Exhibition & Project Cases:

C

Guangzhou Lianhe Machinery Co., Ltd is a machinery manufacturer that locates in Guangzhou, China. It is a high-tech enterprise that established since 1996, as an expert in the fields of cosmetic, food and pharmaceutical machinery.

Over 25 years developing, we supply with a whole production line machines including vacuum emulsifier mixer, liquid washing mixer, water purifying treatment, automatic and semi automatic filling-capping-labeling line, packing machines, perfume production line machines, etc, all machines conforms GMP standard.

LIANHE Company has established a research and development department, continuously bringing forward improvement measures for products to have more excellent quality.

Lianhe strongly believes that high quality products are manufactured not only through excellent management, prominent employees, but also through advanced and fine special equipment for mechanical machining. The basis of market competition, inseparable from the production capability, and can not do without an advanced hardware facilities. Lianhe aware of the importance of hardware facilities, the first peer in the industry to the introduction of foreign advanced production equipment, in the recent years has invested funds hardware facilities for upgrading to the internationalization of production facilities to produce high-end quality products to meet the GMP standard.
