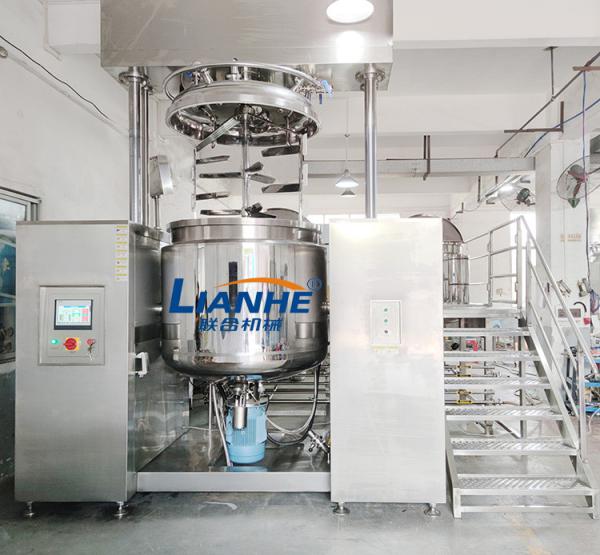

1 Ton Double Cylinder Hydraulic Lift Vacuum Emulsifier Mixer
Whitening Cream Mixer
Product Composition:
The vacuum emulsifying mixer is mainly composed of water pot, oil
pot, emulsifying pot, vacuum system, lifting system (optional),
electric control system (PLC is optional), operation platform, etc.
Product Description:
The vacuum emulsifier homogenizer machine is composed of mixing,
homogenizing, dispersing, emulsifying and PLC or button control
system and also be used with oil, water phase, vacuum,
heating/cooling system, ect.
The mixing system of the machine is designed to produce creams and
liquids of different viscosities. The speed can also be adjusted
according to customer preferences. The vacuum system will ensure
successful operation by preventing the formation of bubbles in the
material.
Product Parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system |
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 |
| The parameters for reference only, all the machines can be
customized accordingly. |
Product Application:
The vacuum emulsifying mixer are mainly used to make high viscosity
emulsions, especially creams, ointments and lotions. The functions
of heating, cooling, dissolving, emulsification and vacuum
defoaming can be completed at one time with an emulsifier; the raw
materials can be fully pulverized, mixed, emulsified and
homogenized to increase the gloss and stability of the product.
Main Features:
The vacuum emulsifying mixer machine produces cream and lotion with
a fine, smooth, glossy form and a highly stable essential material.
During the production process, operators must have a wide range of
skills and abilities to produce the best cream. The classic way of
making cream is to heat the oil and water at a temperature, mixing,
packing materials, emulsifying, and cooling. On the other hand, the
vacuum emulsifying mixer machine's cream is bubble-free, supple,
smooth, and has a long life shelf.
Product Details:
Product Advantage:
The vacuum emulsifying mixer machine produces cream and lotion with
a fine, smooth, glossy form and a highly stable essential material.
During the production process, operators must have a wide range of
skills and abilities to produce the best cream. The classic way of
making cream is to heat the oil and water at a temperature, mixing,
packing materials, emulsifying, and cooling. On the other hand, the
vacuum emulsifying mixer machine's cream is bubble-free, supple,
smooth, and has a long life shelf.
Our Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
