SUS 316L High Shear Vacuum Emulsifier Mixer Cosmetic Manufacturing
Machine
Product Description:
Vacuum emulsification is the high-shear emulsifier distributes one
or more phases to another phase efficiently, quickly and uniformly
under vacuum conditions. Normally, each phase (such as oil phase
and water phase) is not mutually compatible. The utility model
utilizes the strong kinetic energy brought by the machine, so that
the material can withstand hundreds of thousands of hydraulic
shearing, centrifugal extrusion, impact tearing and the like in
each of the narrow and narrow gaps of the rotor, thereby making the
incompatible Under the joint action of mature technology and
appropriate amount of additives, the emulsion is dispersed evenly
in an instant, and after high-frequency circulation and
reciprocation, a high-quality product without bubbles, fineness and
stability is finally obtained.

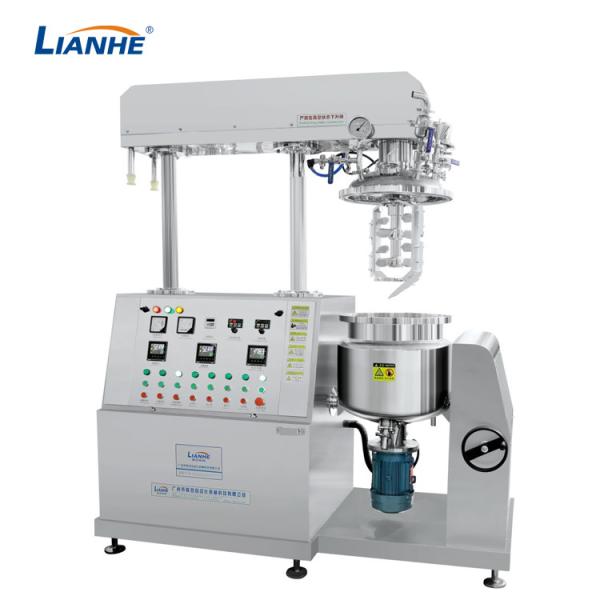

Product Structure:
The group consists of: oil pan, water pot, heating system, mixing
system, vacuum system, automatic lifting system, operation control
cabinet, and piping system.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system |
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 |
| The parameters for reference only, all the machines can be
customized accordingly. |
Product Application:
Vacuum Homogenizing Emulsifier Mixer application: biomedicine; food
industry; daily care products; coating inks; nanomaterials;
petrochemicals; printing and dyeing aids; paper industry;
pesticides and fertilizers; plastics and rubber; power electronics;
Product Specifications:
• Capacity: 5L, 10L, 15L, 25L, 30L, 50L, 100L, 150L, 200L, 250L,
350L, 500L, 650L, 1000L, 1500L, 2000L,3000L,5000L
• Agitator type: homogenizer (high-speed agitator), sweep wall
agitator (low-speed agitator)
• Certificate: CE
• one year warranty
• Supply capacity: 50 units/month
Product Details:
Product Advantage:
The vacuum emulsifying mixer machine produces cream and lotion with
a fine, smooth, glossy form and a highly stable essential material.
During the production process, operators must have a wide range of
skills and abilities to produce the best cream. The classic way of
making cream is to heat the oil and water at a temperature, mixing,
packing materials, emulsifying, and cooling. On the other hand, the
vacuum emulsifying mixer machine's cream is bubble-free, supple,
smooth, and has a long life shelf.
Our Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
