100L Vacuum Emulsifier Mixer Hydraulic Lifting Type Bidirectional Mixing

Cosmetic Cream Vacuum Emulsifier Mixer High Shear Homogenizer Wall Scraper

Technical Parameter:

1. SIEMENS frequency converter for speed adjustment, which can meet production of different technology requirement.
2. The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking adopted can avoid dust,especially for the powder products.
3. Mechanical sealing, good sealing effect and long working life.
4. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
5. Material contact parts all use SUS316L stainless steel.
6. The heating method mainly include electric or steam heating for customer's choice.
7. The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.

With the help of precise processing technology, and high cooperation between rotor and stator, high-speed rotation of powerful motor causes vacuum between rotor and stator, and materials are inhaled from the top of rotor and stator to the gap in between. The strong kinetic energy makes the rotor produce extremely high linear velocity, which makes the material fly out after strong impact, crushing, centrifugal extrusion, liquid layer friction and strong shearing between the gap of rotor and stator, and generate strong turbulence under the action of various forces in different directions. The stable emulsion was produced by depolymerization, dispersion, homogenization, refinement and shearing of the material with a certain amount of emulsifier.

Application Product:

1. Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
2. Cosmetic: Liquid foundation, BB cream, mascara, lipstick, concealer, lip gloss, etc.
3. Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
4. Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, etc.

This machine is suitable for cosmetic cream, paste, mayonnaise, shampoo, syrup, etc products in cosmetic, food, beverage, chemical, daily chemical, beverage, pharmaceutical, medical, etc industries. If customers have any doubt on the machine, or if you are not sure whether this machine is suitable for your products or not, please send us inquiry and we will get back to you very soon.

Machine Details:

The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.

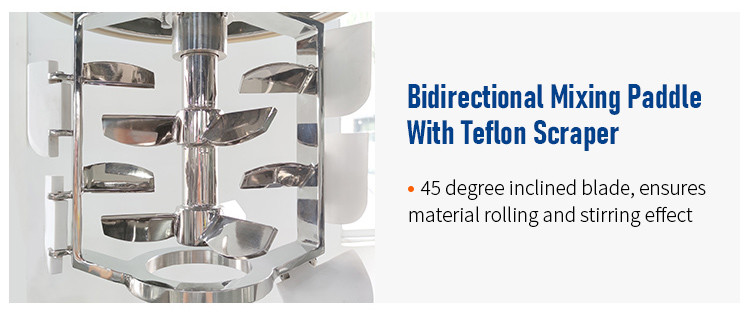

The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by the vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With a very high-speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles that appear during the process will be sucked out promptly in the vacuum status in the tank.

Customer's Reviews:

Exhibition & Project Cases:

Guangzhou Lianhe Machinery Co., Ltd is a machinery manufacturer that locates in Guangzhou, China. It is a high-tech enterprise that established since 1996, as an expert in the fields of cosmetic, food and pharmaceutical machinery.

Over 25 years developing, we supply with a whole production line machines including vacuum emulsifier mixer, liquid washing mixer, water purifying treatment, automatic and semi automatic filling-capping-labeling line, packing machines, perfume production line machines, etc, all machines conforms GMP standard.

LIANHE Company has established a research and development department, continuously bringing forward improvement measures for products to have more excellent quality.

Lianhe strongly believes that high quality products are manufactured not only through excellent management, prominent employees, but also through advanced and fine special equipment for mechanical machining. The basis of market competition, inseparable from the production capability, and can not do without an advanced hardware facilities. Lianhe aware of the importance of hardware facilities, the first peer in the industry to the introduction of foreign advanced production equipment, in the recent years has invested funds hardware facilities for upgrading to the internationalization of production facilities to produce high-end quality products to meet the GMP standard.
