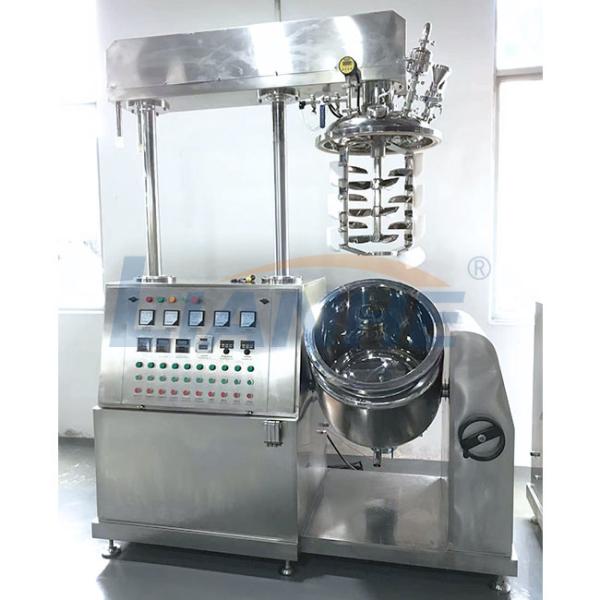

150L Hydraulic Lifting Vacuum Emulsifier Mixer Bottom Homogenizer SUS316L

Application Product:

1. Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
2. Cosmetic: Liquid foundation, BB cream, mascara, lipstick, concealer, lip gloss, etc.
3. Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
4. Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, etc.

Brief Introduction:

The vacuum emulsifier mixer mainly consists of water pot, oil pot, emulsifying pot (main tank), vacuum system, hydraulic lifting system (optional), button or PLC control system, operation platform, etc.

For different capacity requirements, we can customize the capacity from 5 litre to 6000 litre, and different homogenizer options for your choice.

The machine is widely used in Cosmetic, Daily Chemical, Food and Pharmaceutical area for manufacturing viscous and none-viscous liquid products, such as cream, paste, sanitizer gel, body lotion, hair dye, ointment, sauce, mayonnaise, etc.

Featured by easy operation, stable performance, good homogenizing performance, high productivity, easy cleaning, reasonable structure, space saving, etc.

Standard Configuration:

• Emulsifier, water phase tanks, oil phase tank
• Vacuum pumps and sync solenoid valves
• Emulsifier and material filter
• Hydraulic lifting system and mixing system
• Stainless steel platform
• Inverter and electrical control box

Technical Parameter:

Working Method:

The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by the vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With a very high-speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles that appear during the process will be sucked out promptly in the vacuum status in the tank.

Machine Details:

Customer's Reviews:

Exhibition & Project Cases:
