High Shear Homogenizing Vacuum Emulsifier Mixer Lotion Emulsifying
Machine
1000L Fixed Type High Shear Homogenizing Vacuum Emulsifier Mixer
Lotion Emulsifying Machine
Product Description:
This project including 2 sets of 1000L Fixed Type vacuum
emulsifying mixer, and a 500L mixnig and heating tank. The 500L mixnig and heating tank has 2 uses: it can produce low
viscosity product such as detergent, facial mask; and it can also be used as a pre-mixing tank to mixing and heating raw
material.
Product Parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system |
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 |
| The parameters for reference only, all the machines can be
customized accordingly. |
Homogenizer Working Principle:
Under the strong shear, impact, and turbulence effects between the
high-speed rotating rotor and stator, the material emulsifies in
shear cracks and quickly crushes into 200nm-2um. Material
granulation, emulsification, mixing, mixing, and dispersion can be
completed in a short period of time.
Main Features:
- Fixed Vacuum Mixing Machine Capacity: 50L-5000L and other general
specifications and non-standard design and production.
- The Emulsifying Tank cover adopts a Vacuum system, easy to clean,
the emulsifying tank can adopt Positive pressure discharge.
- The vacuum defoaming can make the materials meet the requirement of
being aseptic.The vacuum material sucking is adopted,and especially
for the powder materials,vacuum sucking can avoid dust.

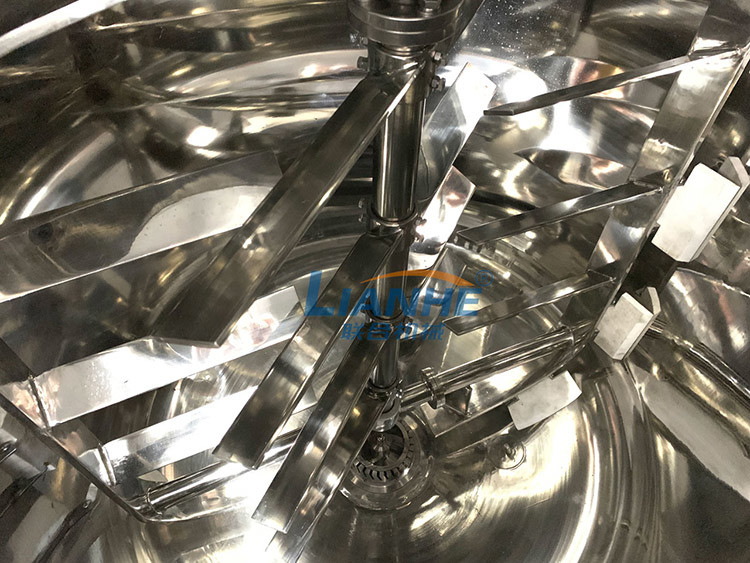

- PTFE scraping board cater to the body of blending groove and
scrape out viscosity material on the boiler wall.
- Homogenizer is installed on the Fixed Vacuum Making Machine
bottom to increase motor power more thoroughly and strongly. During
a few productions, it can exert the homogenizing effect fully.
- SIEMENS frequency converter for speed adjustment of 0-3000 rpm,
which can meet the production of different technology requirements.
- Burgmann mechanical sealing for Vacuum Mixing Making Machine,
good sealing effect, and long working life. Material contact parts
all use SUS316L stainless steel.
Product Application:
We can customize mixers with different functions according to
different products. This machine has the characteristics of simple
operation, stable performance, good homogenization, high production
efficiency, convenient cleaning, reasonable structure, small
footprint, and high degree of automation.

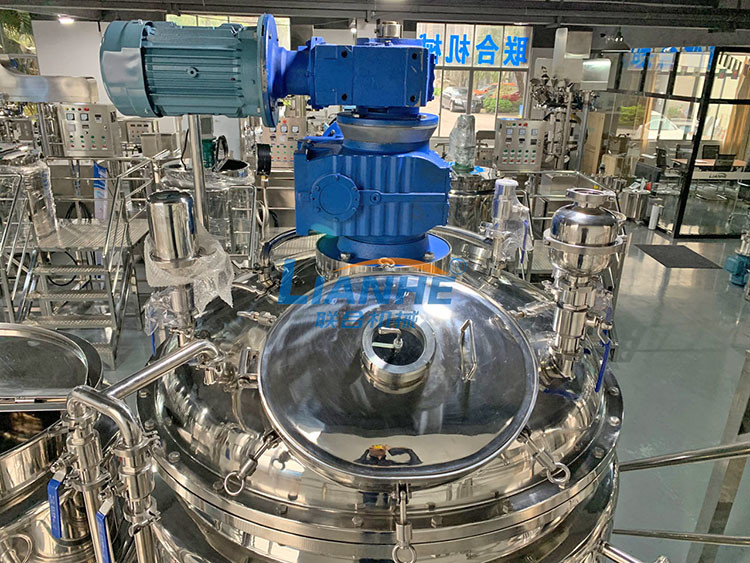

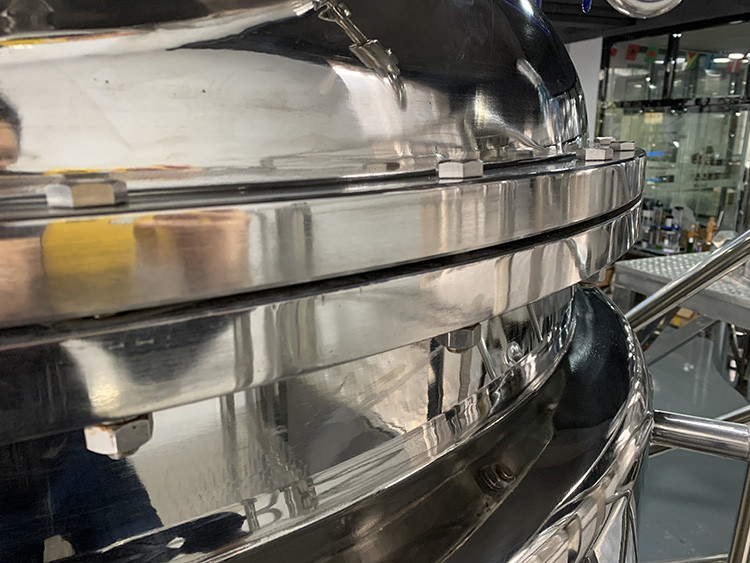

Product Details:
Our Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
