Cosmetic Manufacturing Machine Emulsifying Homogenizer Paste
Ointment Mixer
Product Description of Vacuum Emulsifying Mixer:

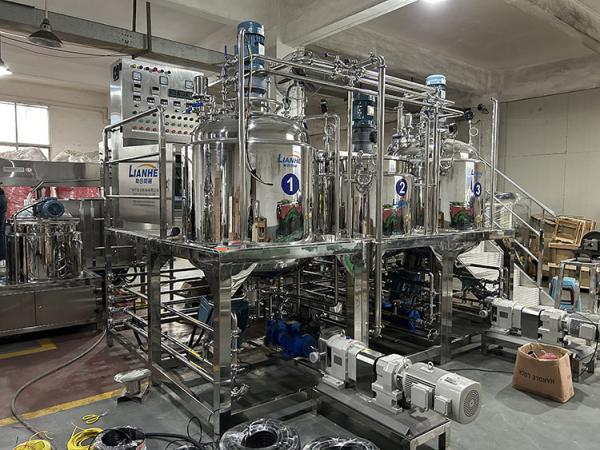

This system includes two 1000L fixed vacuum emulsification mixers
and one 500L mixing heating tank.
The 500L mixing heating tank has two purposes: it can produce low
viscosity products such as detergent and facial mask; It can also
serve as a pre mixing tank to mix and heat the raw materials, and
then transport raw material to the 1000L vacuum emulsification
machine through vacuum function.
Product Parameters of Vacuum Emulsifying Mixer:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system |
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 |
| The parameters for reference only, all the machines can be
customized accordingly. |
Product Composition of Vacuum Emulsifying Mixer:
The vacuum emulsifying mixer is mainly composed of water pot, oil
pot, emulsifying pot, vacuum system, lifting system (optional),
electric control system (PLC is optional), operation platform, etc.
Product Application of Vacuum Emulsifying Mixer:
The vacuum emulsifying mixer are mainly used to make high viscosity
emulsions, especially creams, ointments and lotions.
The functions of heating, cooling, dissolving, emulsification and
vacuum defoaming can be completed at one time with an emulsifier;
the raw materials can be fully pulverized, mixed, emulsified and
homogenized to increase the gloss and stability of the product.
Product Advantage of Vacuum Emulsifying Mixer:
The vacuum emulsifying mixer machine produces cream and lotion with
a fine, smooth, glossy form and a highly stable essential material.
During the production process, operators must have a wide range of
skills and abilities to produce the best cream. The classic way of
making cream is to heat the oil and water at a temperature, mixing,
packing materials, emulsifying, and cooling. On the other hand, the
vacuum emulsifying mixer machine's cream is bubble-free, supple,
smooth, and has a long life shelf.
Product Details of Vacuum Emulsifying Mixer:
Our Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
